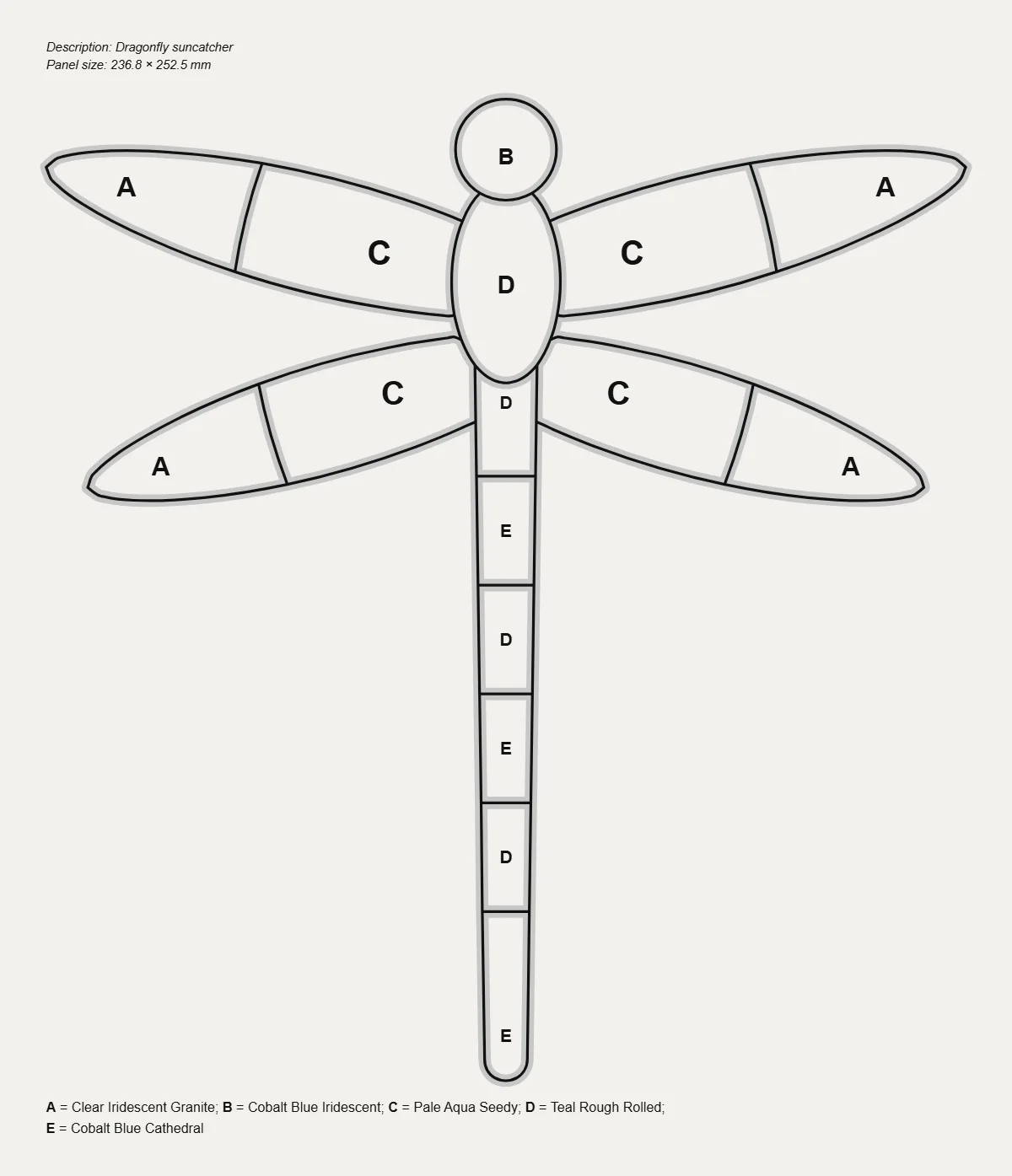

The pattern plan of Dragonfly suncatcher, 236.8 × 252.5 mm in 16 pieces: its lead lines, every glass lettered, and its colour key.

Free stained glass pattern

Dragonfly suncatcher

by VETRATA

A dragonfly with a teal body ringed in cobalt down its tail, and four wings of clear iridescent glass, pale aqua near the body.

Download the free pattern Open VETRATA Studio
Size
236.8 × 252.5 mm, to resize to your opening
Pieces
16, every one numbered
Technique
Copper foil
Glasses
5, each lettered on the plan
Type
Suncatcher
Style
Contemporary
Shape
Free-form

A Vetrata file, not a fixed PDF: open it in VETRATA Studio with File › Open Glass file, resize it to your opening, try it in your own glass and print the cutting pattern full size.

Save to Pinterest

In light

lit from behind, as the Studio's Preview shows it

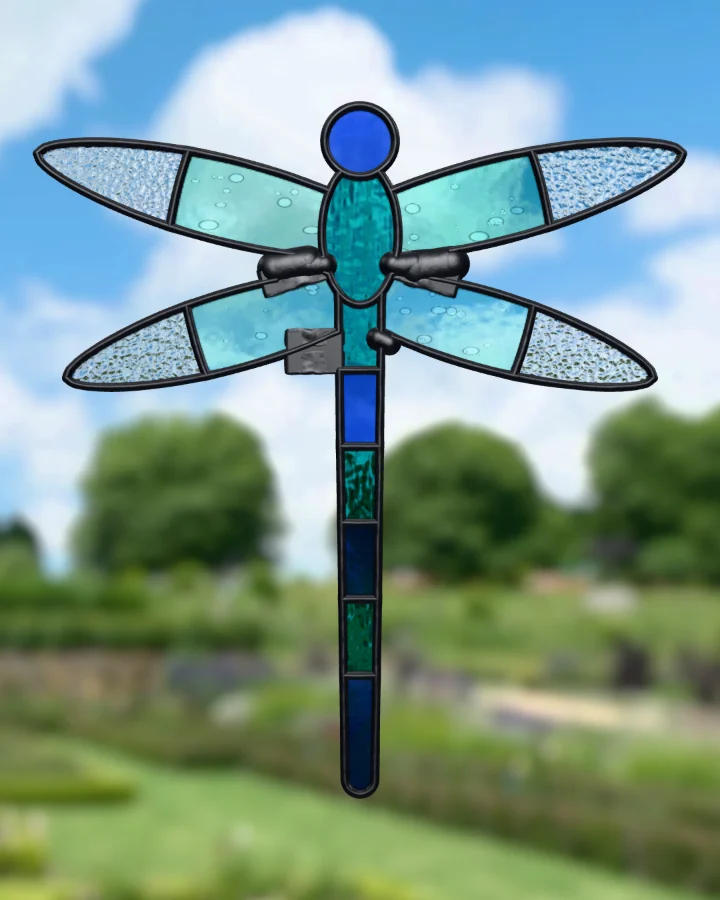

Dragonfly suncatcher glazed, lit from behind.
